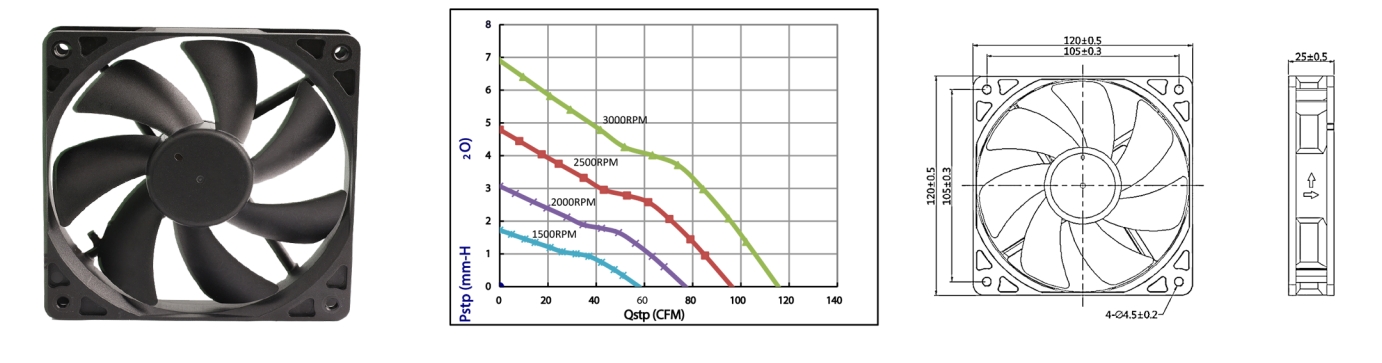

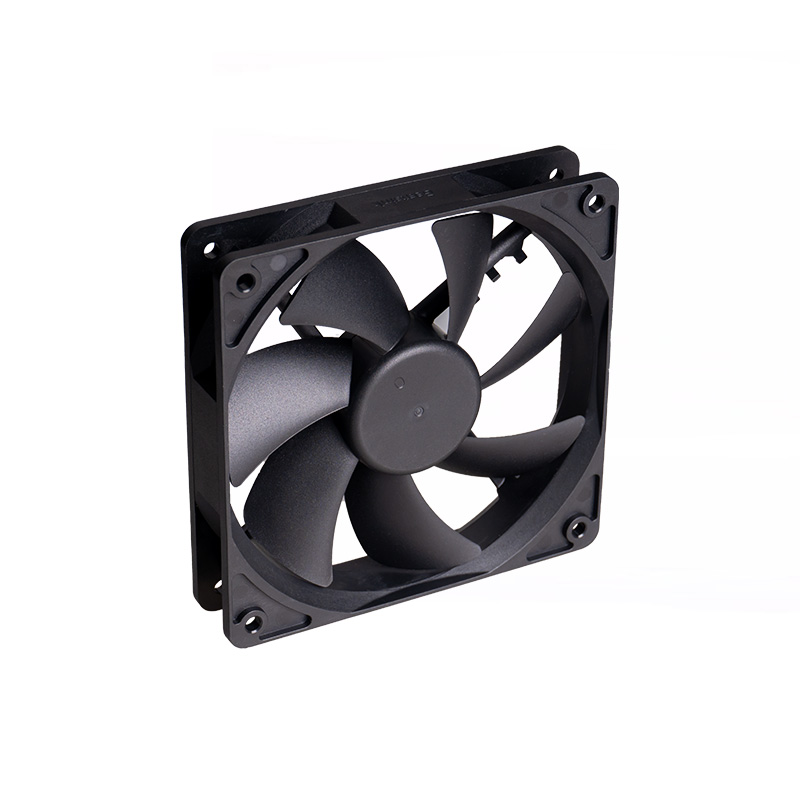

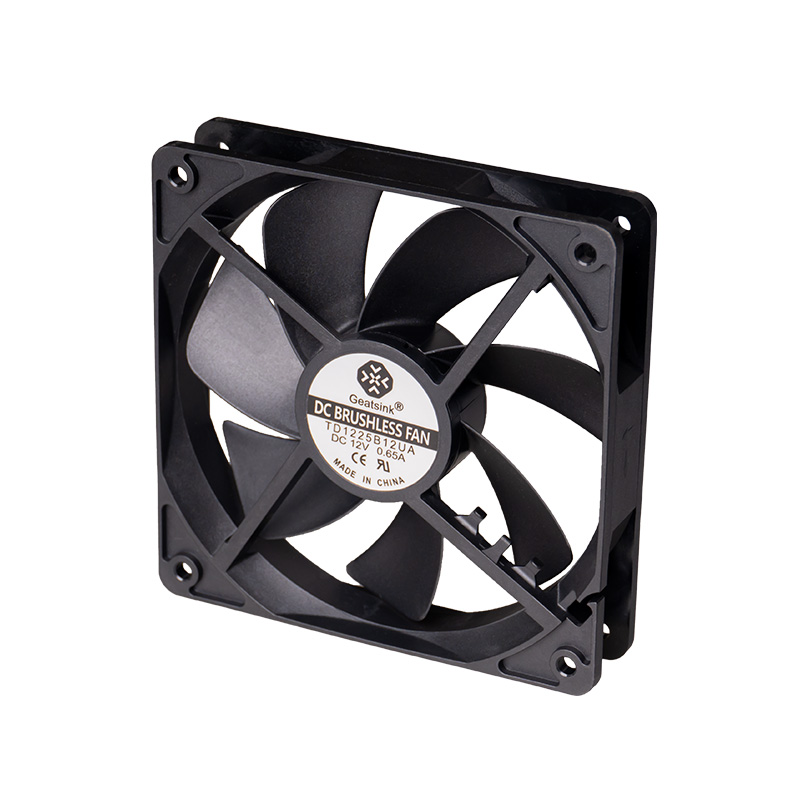

12025

Specially designed with quietness and low jitter. And the pure copper coil effectively resists surge, supports customized speed regulation, temperature control, waterproofing, speed monitoring and other functions, widely used in medical equipment, indoor power supplies, projectors, chassis, etc

Rated voltage（V）： 12V
Air flow(CFM)： 58.18-116.11
Static pressure(mmH2O)： 2.16-6.9
Speed(RPM)： 1500-3000

Parameters

Rated voltage（V）： 12V
Air flow(CFM)： 58.18-116.11
Static pressure(mmH2O)： 2.16-6.9
Speed(RPM)： 1500-3000

Details

Model	Bearing △Hydraulic bearing ●Ball	Ratin Voltage （VDC）	Speed （RPM）	Air Flow （CFM）	Static Pressure (mmH20)	Power Current （AMP）	Power Consumption （WATTS）	Noise （dBA）
TD1225B12LA	●	12	1500	58.18	2.16	0.15	1.80	28.12
TD1225B12MA	●	12	2000	77.58	3.85	0.35	4.20	35.81
TD1225B12HA	●	12	2500	96.97	6.01	0.40	4.80	40.66
TD1225B12UA	●	12	3000	116.11	6.9	0.65	7.8	48. 5
